Product Summary

The J00-0065NL 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector is designed to support high volume cost conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.

Parametrics

J00-0065NL absolute maximum ratings: (1)10 base-T electrical specifications @ 25℃, operating temperature: 0 to 70℃; (2)Returns loss, 100Ω, ±15Ω: -18 to -10dB; (3)Crosstalk: -35 to -30dB; (4)Hipot: 1500Vms.

Features

J00-0065NL features: (1)RoHS peak wave solder temperature rating 260℃; (2)Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

Diagrams

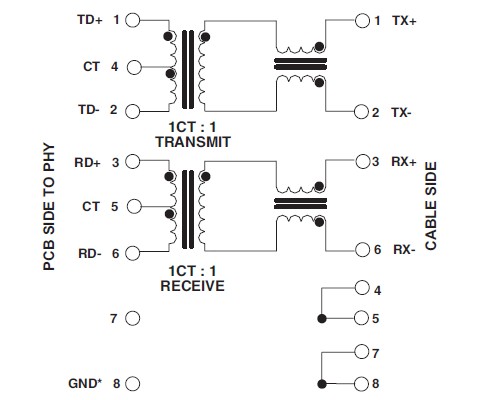

J00-0065NL Electrical Schematics

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J00-0065NL
J00-0065NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $4.09
1-10: $2.92
10-100: $2.36
100-500: $2.05
