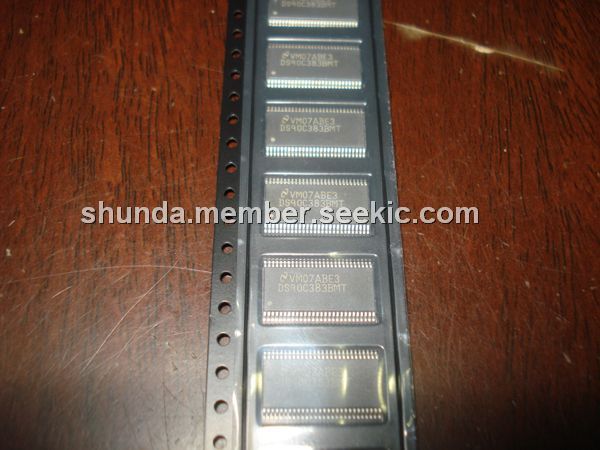

DS90C383BMT

3.3V Programmable LVDS Transmitter, 65 MHz, Low profile 56-lead TSSOP package

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~1.20

PartNumber:: DS90C383BMT

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-16

From Other Seller

Part Number:DS90C383BMT
US $0.95 - 1.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

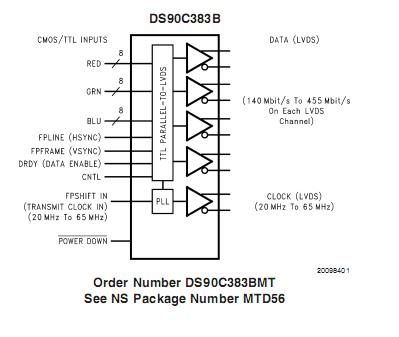

The DS90C383BMT is a 3.3V Programmable LVDS Transmitter. It converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. The DS90C383BMT can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin. The DS90C383BMT is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.

Parametrics

DS90C383BMT absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.3V to (VCC + 0.3V); (3)LVDS Driver Output Voltage:-0.3V to (VCC + 0.3V); (4)LVDS Output Short Circuit: Duration:Continuous; (5)Junction Temperature:+150℃; (6)Storage Temperature:-65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec):+260℃.

Features

DS90C383BMT features: (1)18 to 68 MHz shift clock support; (2)Best–in–Class Set & Hold Times on TxINPUTs; (3)Tx power consumption < 130 mW (typ) @65MHz Grayscale; (4)40% Less Power Dissipation than BiCMOS Alternatives; (5)Tx Power-down mode < 60μW (typ); (6)Supports VGA, SVGA, XGA and Dual Pixel SXGA.; (7)Narrow bus reduces cable size and cost; (8)Up to 1.8 Gbps throughput; (9)Up to 227 Megabytes/sec bandwidth; (10)345 mV (typ) swing LVDS devices for low EMI; (11)PLL requires no external components; (12)Compatible with TIA/EIA-644 LVDS standard; (13)Low profile 56-lead TSSOP package; (14)Improved replacement for: SN75LVDS83, DS90C383; (15)No special start-up sequence required between clock/data and /PD pins. Input signal (clock and data) can be applied either before or after the device is powered.
